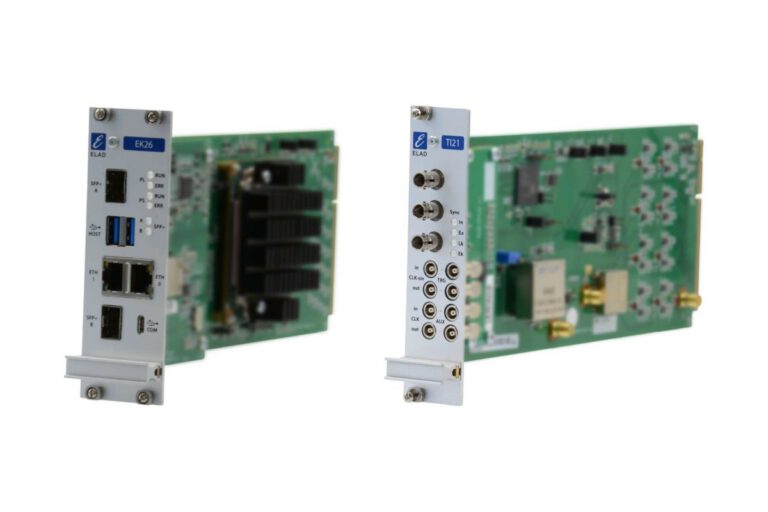

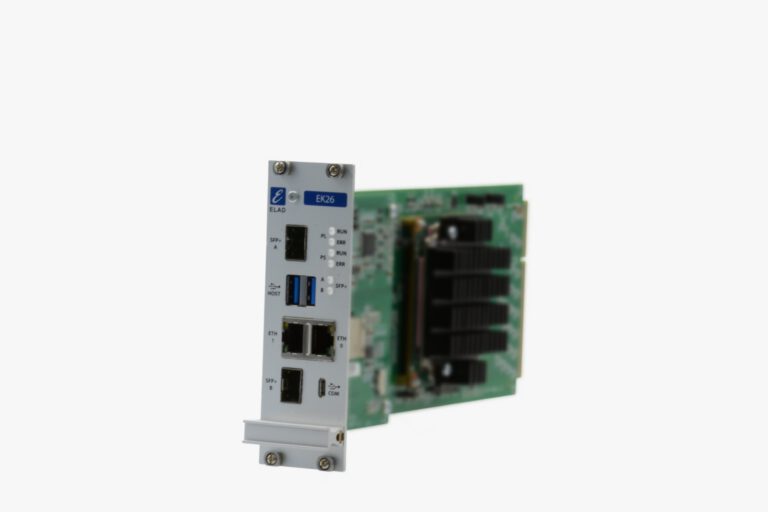

SL-CRS-CTR
System
Controller
Crate controllerCrate controller built around a system-on-module with FPGA fabric and ARM processor: the programmable logic handles the acquisition…
DAQ Data acquisition

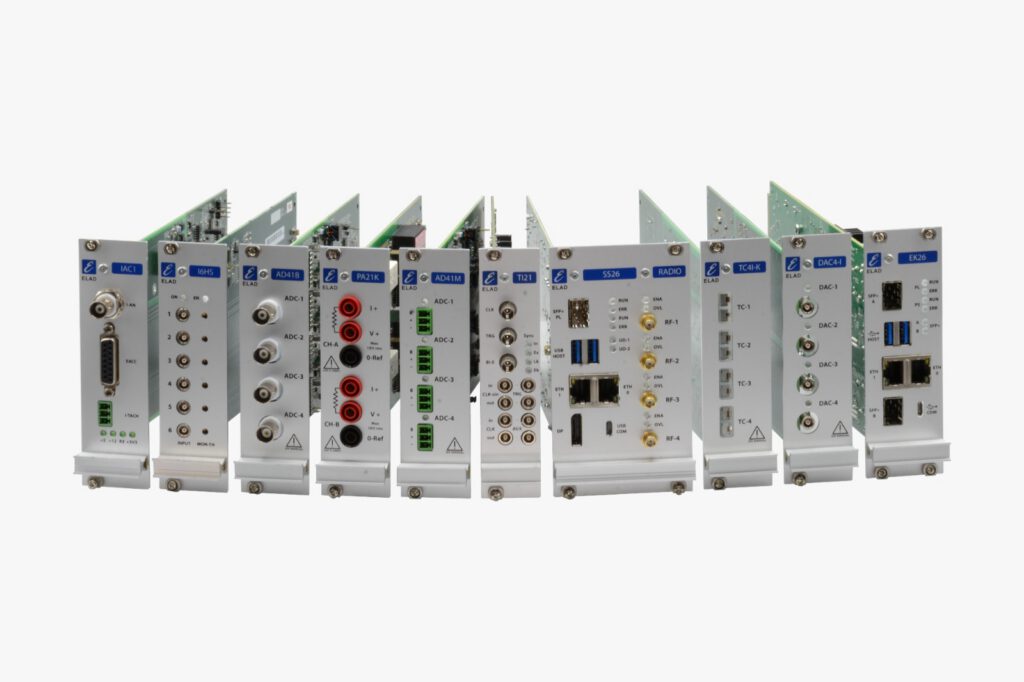

corus data acquisition platform: crate controller and timing, analog acquisition and output, digital I/O, custom boards, chassis and the corus Studio software.

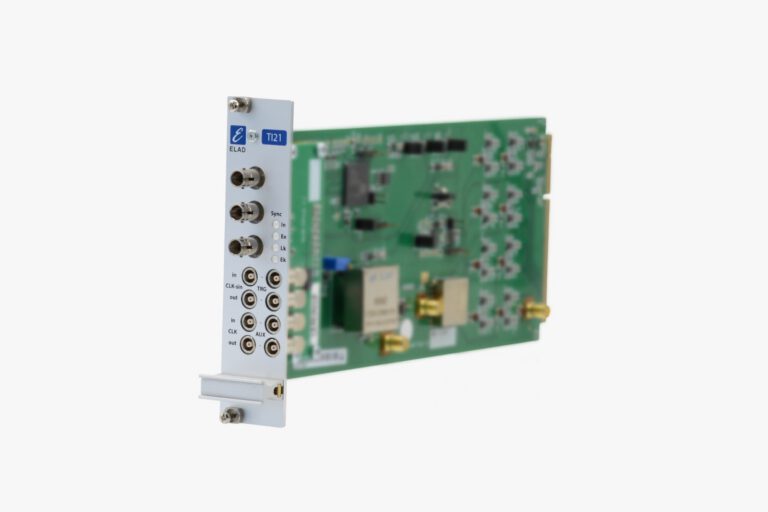

SL-CRS-TI
System
Timing
Timing boardOptional timing module: it distributes clock, trigger and synchronization across the units, with a system clock of 20,…

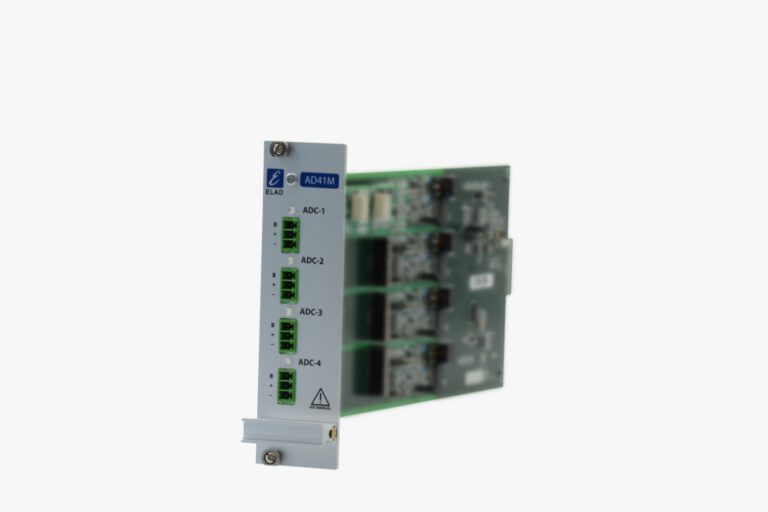

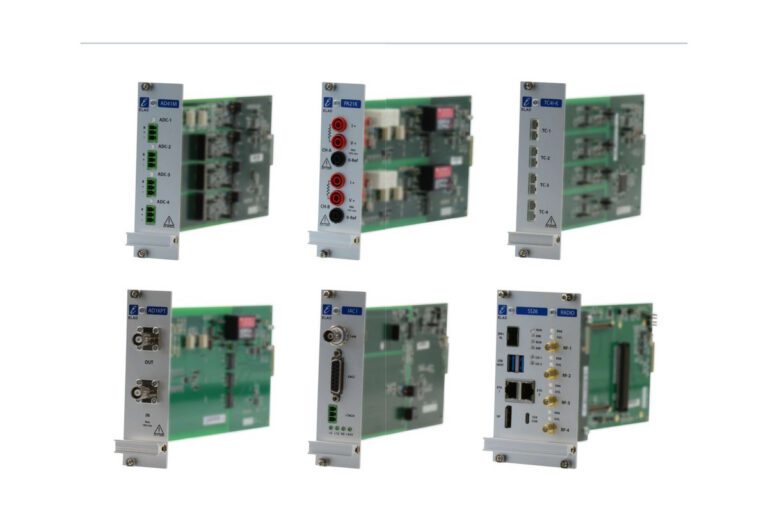

SL-CRS-ADC
Analog acquisition
General purpose analog acquisition
Analog input modulesGeneral-purpose 4-channel analog acquisition board of the corus platform. Each channel can be tailored to the application with…
SC-CRS-FE
Analog acquisition
Front-ends for general purpose analog acquisition
ADC piggybacksFront-end piggybacks compatible with the SL-CRS-ADC analog acquisition board: each channel hosts a piggyback that sets its input…

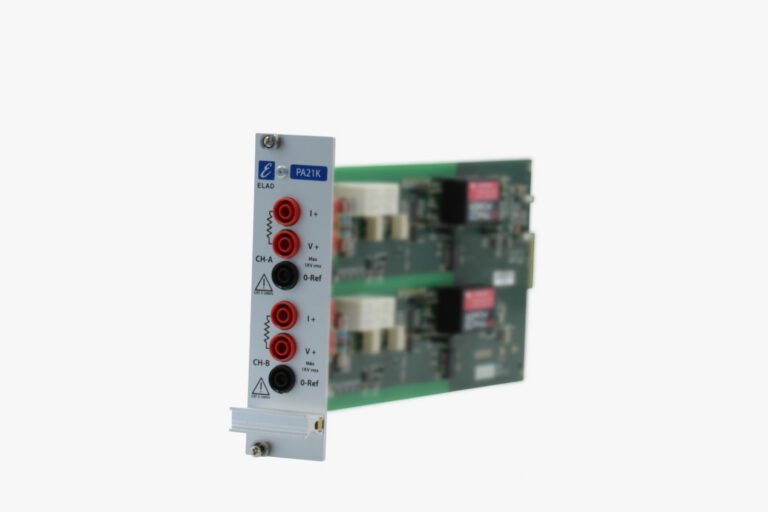

SL-CRS-PWA
Analog acquisition
Power analyzer
Power analyzer modulesPower analyzer board with two inputs, each combining two synchronized channels — voltage and current — for power…

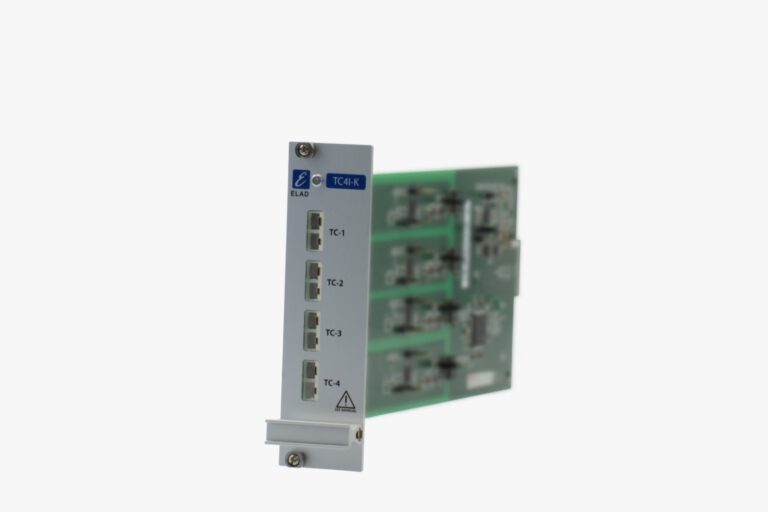

SL-CRS-TC
Analog acquisition
Thermocouple acquisition
Thermocouple acquisition boards4-channel thermocouple acquisition, which digitizes the signal with built-in cold-junction compensation and LUT linearization for 8 thermocouple types…

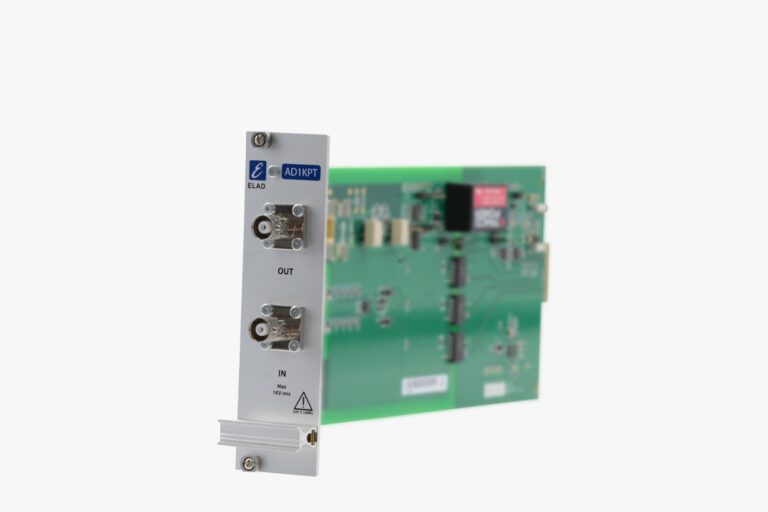

SL-CRS-HVP
Analog acquisition
HV pass-through
High-voltage pass-throughVoltage measurement board with isolated MHV connector and internal voltage pass-through: the voltage enters on an input connector…

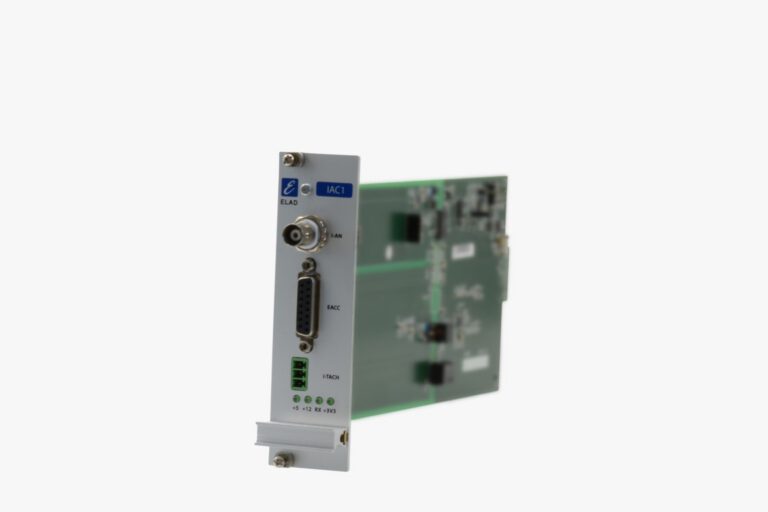

SL-CRS-ACC
Analog acquisition
Accelerometer
Accelerometer interfaceAccelerometer acquisition board with three input types on one module: an IEPE input for standard piezoelectric accelerometers with…

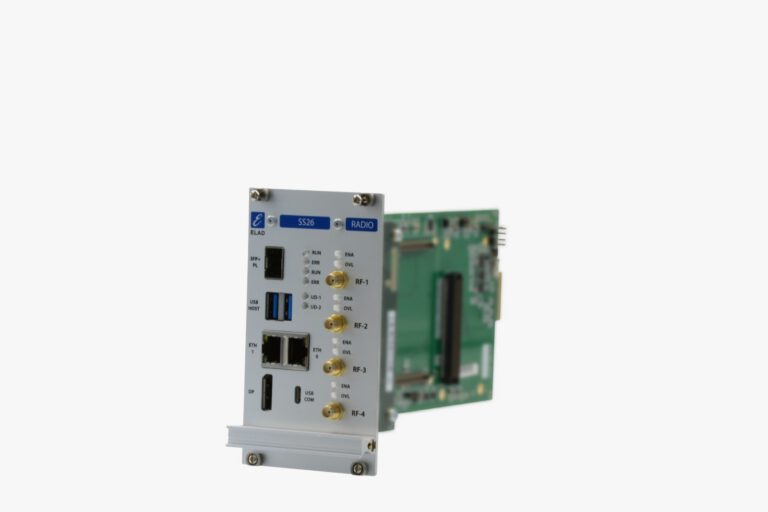

SL-CRS-SS
Analog acquisition
Radio
Radio receiver slave module4-channel radio receiver module with an on-board FPGA + ARM system-on-module, working as a slave of the crate…
SL-CRS-DAC
Analog output
Analog output
Analog output modulesIsolated analog output: 4-channel universal-range version, or single-channel high-voltage version with output up to 1 kV on an…

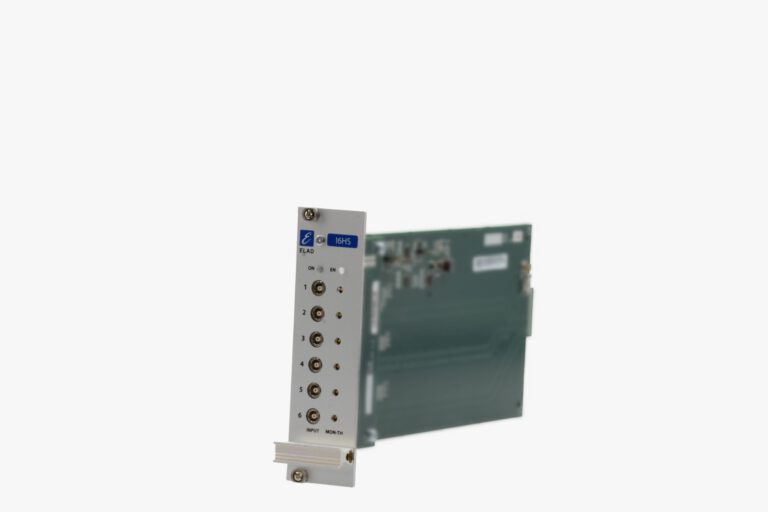

SL-CRS-DI
Digital I/O
Digital input
High-speed digital inputs32-bit high-speed digital input board with 6 front-panel channels. Trigger logic and trigger threshold are programmable; the effective…

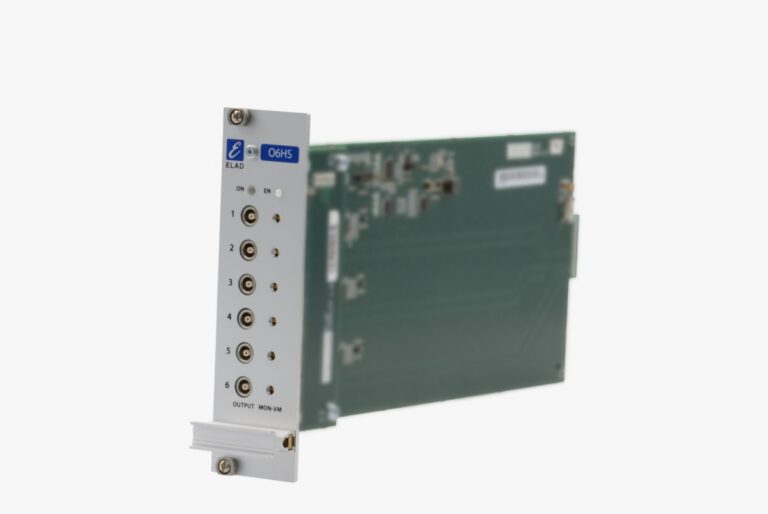

SL-CRS-DO
Digital I/O
Digital output
High-speed digital outputs32-bit high-speed digital output board with 6 front-panel channels, counterpart of the digital input board. Output logic and…
DAQ
Custom boards
When none of the boards in this catalogue meets the application requirements, ELAD designs and manufactures custom acquisition…
DAQ
Chassis and accessories
Crate chassis and accessories for the corus platform.

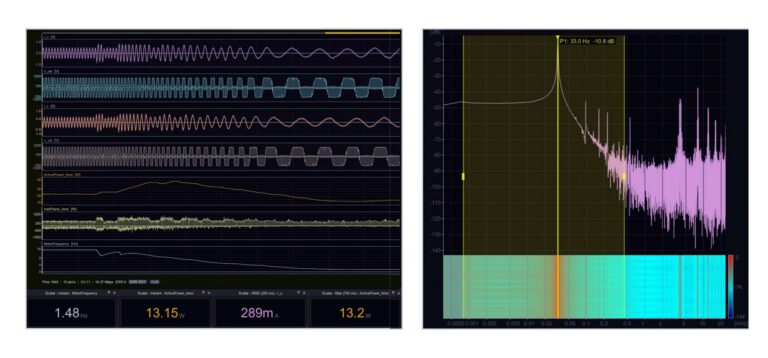

DAQ
Software
corus Studio is the host application that runs on the PC connected to the rack. One window covers…
